Hot Runner Thermocouple

Name: Hot Runner Thermocouple
Brand: HINDUSTAN MOULDS TECHNOLOGY
Price: 1000.0 INR
Availability: InStock

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Precision High Precision
Tolerance 1.5C or 0.4%
Life Span Long Service Life
Shaping Mode Hot Runner
Usage A hot runner thermocouple is a temperature sensor used in hot runner systems of injection moulds to monitor and control the temperature of the manifold and nozzles.
Material Stainless Steel
Type K Type Thermocouple
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Hot Runner Thermocouple Price And Quantity

Minimum Order Quantity 10 Piece
Price 1000.0 INR/Piece

Hot Runner Thermocouple Product Specifications

Size Customizable (Typical probe diameter ranges 3mm-6mm)
Surface Treatment Braided Insulation
Type K Type Thermocouple
Shaping Mode Hot Runner
Life Span Long Service Life
Material Stainless Steel
Tolerance 1.5C or 0.4%
Precision High Precision
Usage A hot runner thermocouple is a temperature sensor used in hot runner systems of injection moulds to monitor and control the temperature of the manifold and nozzles.
Weight Approx. 50-100 grams

Connection Type Bolt/Screw Mount
Lead Wire Type Compensating Cable
Cable Length Standard 1 meter (customizable)
Application Hot Runner System for Plastic Injection Molding
Response Time Fast (1-2 seconds)
Temperature Range 0C to 400C
Cable Shielding SS Braided Shield
Sensor Tip Material Stainless Steel
Color Code Red/Blue (K-Type Standard)
Resistance to Vibration High
Wire Insulation PTFE/Teflon
Mounting Fixed Thread/Bolt

Product Description

Experience the hot-selling Hot Runner Thermocouple-an incomparable, highly recommended masterpiece engineered for precision in plastic injection molding. Crafted with crackerjack skill from durable stainless steel, it features a standard 1-meter SS braided compensating cable, ensuring outstanding resistance to vibration and long service life. The PTFE/Teflon-insulated K-type sensor offers rapid 1-2 second response within a broad 0C to 400C range. With customizable probe diameters and robust bolt/screw mounting, this vital device is in demand among exporters, manufacturers, and suppliers for maintaining optimal temperatures in hot runner systems.

Hot Runner Thermocouple: Precision for Injection Molding

The Hot Runner Thermocouple is purpose-built for seamless integration within hot runner systems of plastic injection molding machines. Its site of application is the manifold and nozzle, where it closely monitors and controls temperature. Notable features include customizable sizing, stainless steel construction, insulation with SS-braided shield, and K-Type accuracy. Its high-precision and fast response enable consistent, quality output while providing resilience against vibrations for various plastic molding areas.

Payment Terms, Export Markets & Delivery for Hot Runner Thermocouple

We offer this premium thermocouple at competitive rates, reflecting its crackerjack quality and high demand. Payment terms are flexible based on customer requirements. Our main export markets include Europe, Asia, the Middle East, and America. Typical delivery time is prompt, ensuring rapid fulfillment at the best asking price. Our premium product and responsive service guarantee satisfaction for all clients, from manufacturers to global suppliers. Contact us for detailed rate information.

FAQ's of Hot Runner Thermocouple:

Q: How is the Hot Runner Thermocouple installed in a molding system?

A: The thermocouple is designed for bolt or screw mounting, providing a secure and fixed installation directly into the hot runner manifold or nozzle for accurate temperature monitoring.

Q: What makes this thermocouple highly recommended for hot runner applications?

A: Its fast response, high vibration resistance, stainless steel construction, and PTFE/Teflon insulation make it both durable and highly precise, ideal for demanding injection molding environments.

Q: When should I consider using a K-Type thermocouple in my setup?

A: A K-Type thermocouple is advisable when you need to measure temperatures between 0C and 400C with reliability and accuracy, especially in hot runner systems where precise heating is paramount.

Q: Where is the main area of application for this thermocouple?

A: The primary application is inside hot runner systems of plastic injection molds, specifically to monitor and control the temperature of the manifold and nozzles.

Q: What are the key benefits of the SS-braided shielded cable and PTFE insulation?

A: The SS braided shielding and PTFE insulation provide excellent protection against mechanical abrasion, electrical interference, and high temperatures, ensuring long-term stability and accuracy.

Q: Is customization available for probe diameters and cable length?

A: Yes, both the probe diameter (typically 3mm-6mm) and cable length can be customized to fit your specific hot runner system requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Blow Moulding Components' category

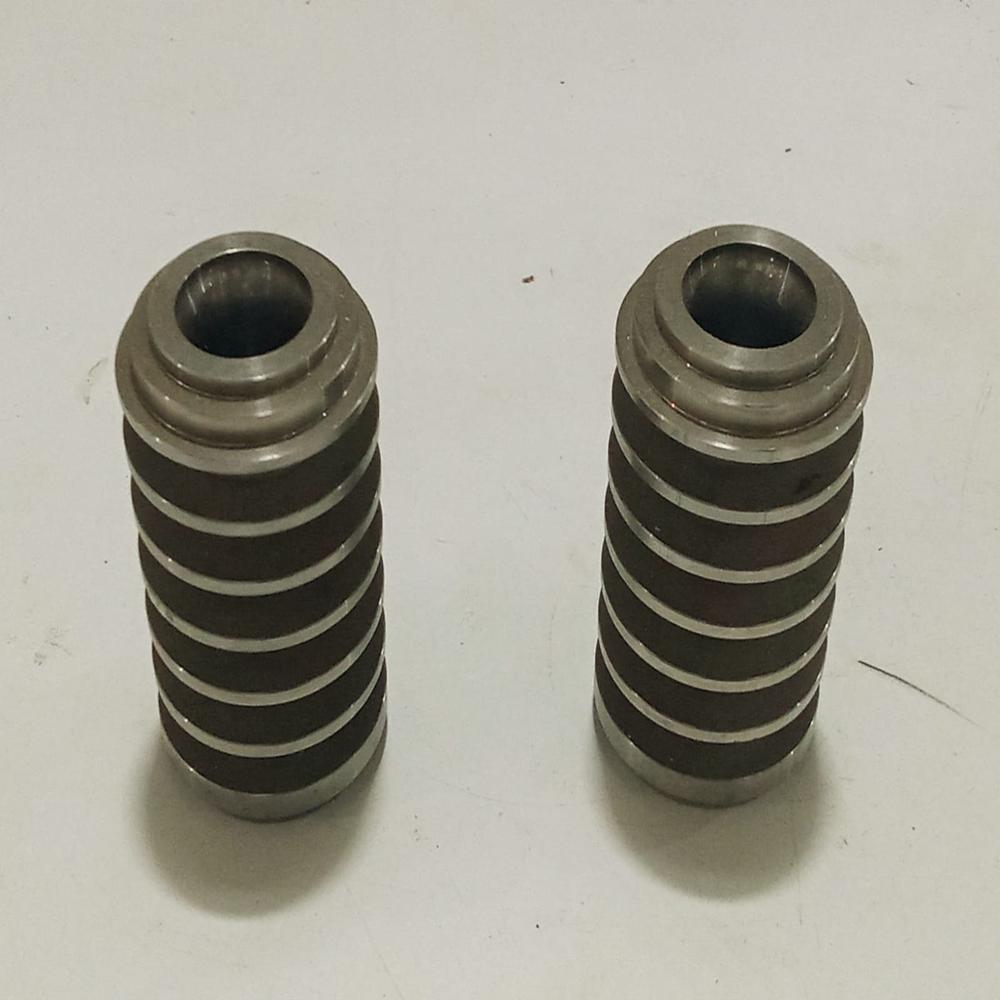

Injection Cavity Price : 15000.0 INR/Piece Minimum Order Quantity : 10 Molding Material : Thermoplastic/Other compatible resins Material : Other, Hardened Tool Steel Weight : Approx. 200500 g (each) Surface Treatment : Polished/Surface Hardened Size : Custom/As per design Hardness : HRC 5055 Type : Other, Mold Cavity Insert Cavity : Single or Multi as required Tolerance : 0.01 mm Life Span : 500,000 shots Precision : High Precision Shaping Mode : Other, Injection Molding Mold Base : Standard Mold Base Compatible

Send Inquiry

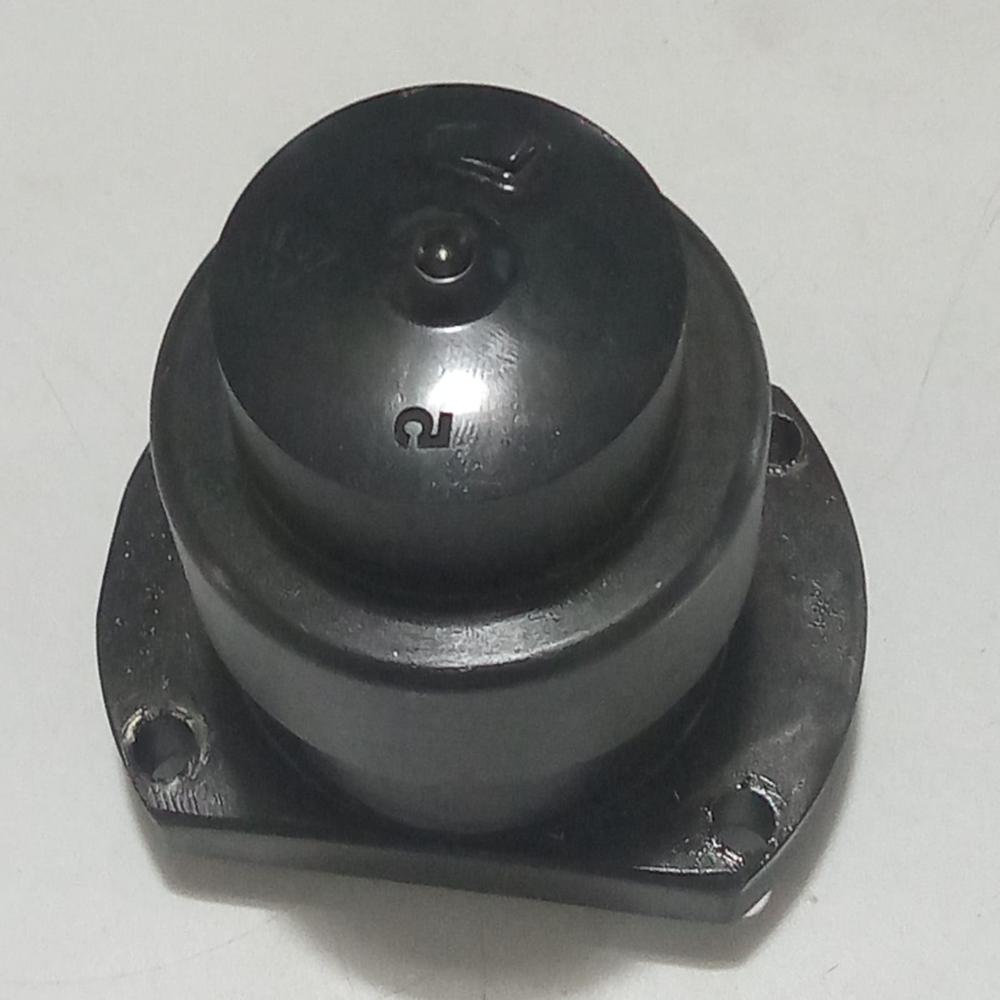

Bottom Blow Moulding Components Price : 5000.0 INR/Piece Minimum Order Quantity : 5 Molding Material : Thermoplastic/HDPE, LDPE, PP etc. Material : Other, Hardened Tool Steel Weight : Depends on Custom Specifications Surface Treatment : Polished/Heat Treated Size : Custom/As per Mold Design Hardness : 5060 HRC Type : Other, Bottom Blow Moulding Component Cavity : Single/Multiple as required Tolerance : 0.01 mm Life Span : 500,000 shots Precision : High Precision Machined Shaping Mode : Other, Blow Moulding Mold Base : Standard Mold Base Steel
